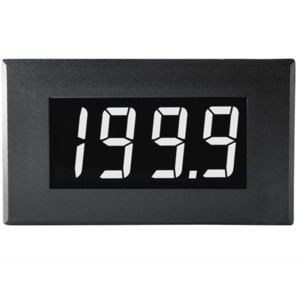

Enhanced Black, negative mode LCD voltmeter with white backlighting. Completely Assembled & Tested. RoHS Compliant

• 19mm (0.75“) Digit Height
• IDC Interface
• Auto-zero
• Auto-polarity
• 200mV d.c. Full Scale Reading (F.S.R.)
• Enhanced black LCD with LED Backlight
• Single Rail 5V d.c. Supply
• Alarm Annunciator

The DPM 950S-EB-W features an enhanced black LCD and 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The DPM 950S-EB-W features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Enhanced contrast negative mode LCD with white LED backlighting ensures excellent readability under all light conditions. The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the bezel, window and clip provided.
