Lascar Electronics
Lascar Electronics

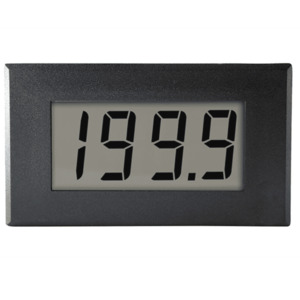

Lascar Electronics DPM 942 Digital Panel Meter, LCD Display, 3.5 Digits, 4-20mA, DPM Series

Part #70047202

MFG #DPM 942

Lascar Electronics DPM 942
Lascar Electronics
Lascar Electronics

Lascar Electronics DPM 942 Digital Panel Meter, LCD Display, 3.5 Digits, 4-20mA, DPM Series

Part #70047202

MFG #DPM 942

€
€

  • 4-20mA Loop Powered LCD Meter
  • 199mm Digit Height
  • Programmable Decimal Point
  • Low Volt Drop
  • Single Scre Terminal Connections

The large loop powered indicator features a 3½ digit LCD with 19mm (0.75″) digit height. Calibration is by two multi-turn potentiometers and connection to the current loop is via two screw terminals. The DPM 942 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.


Brand: Lascar Electronics
Series: DPM Series
Current Rating: 20 mA
Dimensions: 76x44 mm
Display Digits: 3.5 Digits
Display Type: LCD
Operating Temperature Range: 32-122°F
Sample Rate: 3 samples/sec
Voltage Rating: 4.8 V
Lascar Electronics Panel Instrument Application Notes
Lascar Electronics Lascar Panel Meter and Instrument Range Declaration of Conformity
Lascar Electronics DPM 942 Datasheet
€
€
