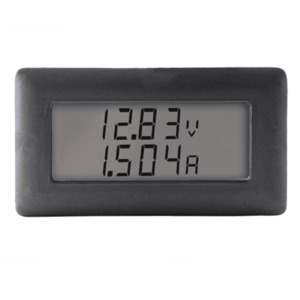

Dual 200mV LCD Voltmeter with Annunciator symbols. Completely Assembled & Tested.

• 6.4mm (0.25“) Digit Height
• Dual Channel
• 200mV d.c. Full Scale Reading (F.S.R.)
• Selectable Decimal Points
• Auto-zero, Auto-polarity
• Common Signal Ground
• Annunciators

The dual channel 3½ digit LCD panel meter features 6.4mm (0.25″) digit height, 200mV d.c. full scale reading, auto-zero and auto-polarity. Connection is via a 10-way SIL pin header. The module is fitted into a panel via the bezel, window and clips provided. This product is ideal for those applications where “matched” readings are required, e.g.: voltage and current, temperature and humidity, etc.
