Lascar Electronics

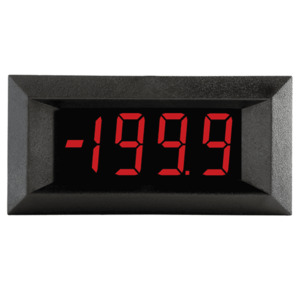

Lascar Electronics DPM 40 Digital Panel Meter, LED Display, 3.5 Digits, Full Scale, DPM Series
Part #70047189
MFG #DPM 40
Lascar Electronics
Lascar Electronics DPM 40 Digital Panel Meter, LED Display, 3.5 Digits, Full Scale, DPM Series
Part #70047189
MFG #DPM 40
€
€
- Description
- Attributes
- Documents
- 3½ Digit LED Module
- 200mV d.c Full Scale Reading
- Programmable Decimal Point
- Auto-Zero & Auto- Polarity
The panel meter features a 3½ digit LED display with 11mm (0.43″) digit height. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into two 5-way sockets and can be fitted into a panel via the bezel, window and clips provided. The DPM 40 is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
Brand:Â Lascar Electronics
Series:Â DPM Series
Current Rating:Â 90 mA
Dimensions:Â 72x36 mm
Display Digits:Â 3.5 Digits
Display Type:Â LED
Operating Temperature Range: 32-122°F
Sample Rate:Â 2.5 Samples/sec
Voltage Rating:Â 5.5 V
€
€
