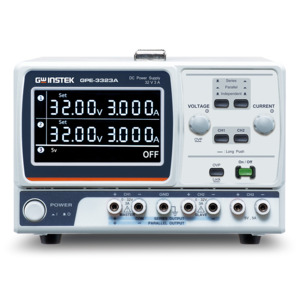

GPE-X323A Series Multiple Output Linear DC Power Supplies
Features
- 1/2/3/4 Independent Isolated Output
- 4.3-inch LCD Display
- Setting & Read back Resolution 10 mV/1 mA (GPE-1326A is 10 mV / 2 mA)
- Output ON/OFF
- Analog Control (Remote I/O) for Output ON / OFF
- Key Lock Function
- Tracking Series and Parallel Operation (Multi-channel Models)
- Smart cooling fan achieving low noise
- Optional European Jack Type Terminal
- Recovery Time: ≤100 µs (50% Load Change, Minimum Load 0.5 A)
- Remote Sense (GPE-1326A Only)
The GPE-X323A series is a cutting edge, economical linear DC Power supply. The GPE-X323A series features output power from 192 watts to 217 watts, three independent isolated output channels (for GPE-3323A), high resolution, low noise, high reliability, and compact size. The GPE-X323A series has a built-in digital panel control design to replace conventional control method. This unique design allows the GPE-X323A series linear DC power supply to provide users with more efficient functionalities, including set view and key lock so as to expedite the operation process. The key lock function protects DUTs by preventing others from changing voltage and current parameters. Additionally, output key light facilitates users in clearly reading the operational status of power supply.
Evolving for Excellence, Unwavering in Quality
The GPE-X323A series DC power supply is the latest iteration of the GPE-X323 series, building upon its proven quality and reputation. This upgraded model refines precision with an encoder switch for more accurate voltage and current adjustments. Additionally, the digital control system has been streamlined—reducing six rotary knobs to just two—enhancing the front panel’s simplicity and ease of operation.
A key improvement in this iteration is the overvoltage protection (OVP). Unlike the previous GPE series, which relied on a single maximum voltage threshold for activation, the new A series allows independent OVP voltage settings for each channel: CH1/CH2:1 V to 36 V;CH3:5.5 V (GPE-3323A);1 V to 6 V (GPE-4323A);CH4:1 V to 16 V (GPE-4323A).
These refinements make the A series a more flexible and precise for multi-channel applications.
Common features of GPE-X323A and GPE-X323 series
- The X in X323 can be 2/3/4, representing dual-channel, triple-channel, or quad-channel.
- Output power from 192 watts to 217 watts
- High Resolution
- Low Noise
- Voltage Recovery Time:≤ 100 µs (50 % load change, minimum load 0.5 A)
- Key Lock Function
APPLICATIONS
- Laboratories and Educational Facilities GPE-4323A Rear Panel
- Product Testing and Quality Assurance
- Service Operation and Post-Sales Support
- Product Development and Debugging
In The Box
- GPE-3323A Linear DC Power Supply
- Power Cord x 1
- Packing List x1
- Test Lead: European : GTL-204A x 3
