B&K Precision 1739 DC Power Supply, Single Output, Low Current, 30V, 1A, 30W, RS-232

€942,00 inc. VAT
Available
Order Today - Ready to Ship Soon
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

B&K Precision

B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.

0 to 30 Volts, 1 Amp Low 1 mA settable current limit with 0.1 mA resolution Output on/off button Exceptionally low current ripple and noise (<0.4 mArms) Excellent regulation Constant voltage (CV) and constant current (CC) operation Two large, easy-to-read LED displays provide good visibility in bright or low light conditions CV and CC mode indicator Automatic recall of saved voltage and current settings upon power-up RS-232 interface Isolated output Overload and reverse polarity protection Power-on self test Three-year warranty
PC Connectivity
B&K Precision 1739 DC Power Supply
Control the 1739 via RS-232 interface through the application software or programming commands.

Low Current High Resolution DC Power Supply

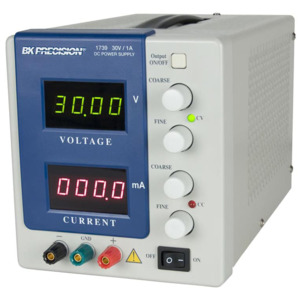

The model 1739 is a high resolution, low current DC power source with excellent load regulation and low noise characteristics. Two 4-digit LED displays continuously monitor the output voltage and current. The power supplies can be operated locally from the front panel or remotely through the RS-232 interface. The mechanical configuration conserves bench space and allows for easy portability.

Using a MOSFET circuit design and high quality components with very low temperature coefficients, the power supply is extremely stable and capable of outputting current as low as 1 mA with a 100 uA settable resolution. This power supply was designed for electrical and electronics applications requiring precise levels of low current, including 4-20 mA current loop testing, calibration, or basic IC testing.
